Engineering
Fromconcepttolaunch,everyiterationismeasurable,testable,andrace-focused.
Autodesk Fusion 360
CAD Sculpting
Aerodynamic chassis geometry is shaped for minimum drag and stable centerline behavior.
Geometry ready for simulation
Ansys CFD
CFD Validation
Pressure maps and streamline behavior guide parameter-level refinements.
Quantified airflow improvements
Denford 2600 Router
CNC Production
Final validated model is machined, finished, and prepped for race conditions.
Competition-ready car body
DigitalPrototyping&Analysis
Iterative3DCADexplorationandvirtualCFDtestingofourindependentfoundationalconcepts.
Renders

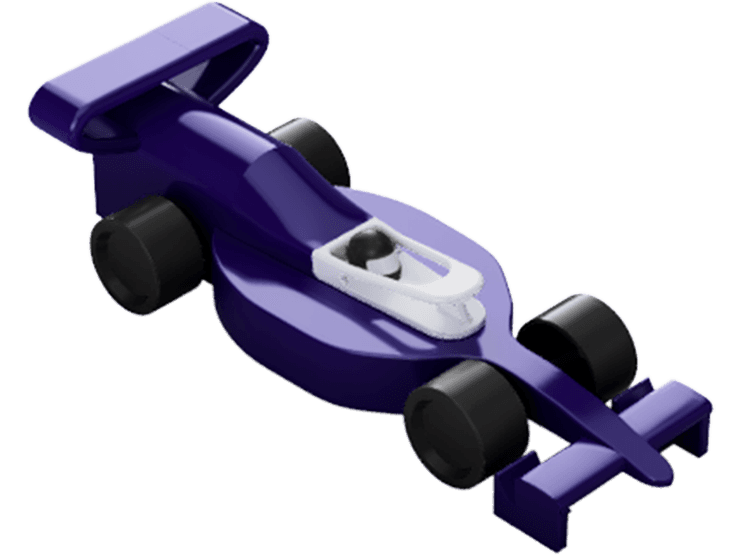

Concept Alpha
Initial surface exploration focusing on minimizing frontal area and optimizing straight-line speed.
Renders

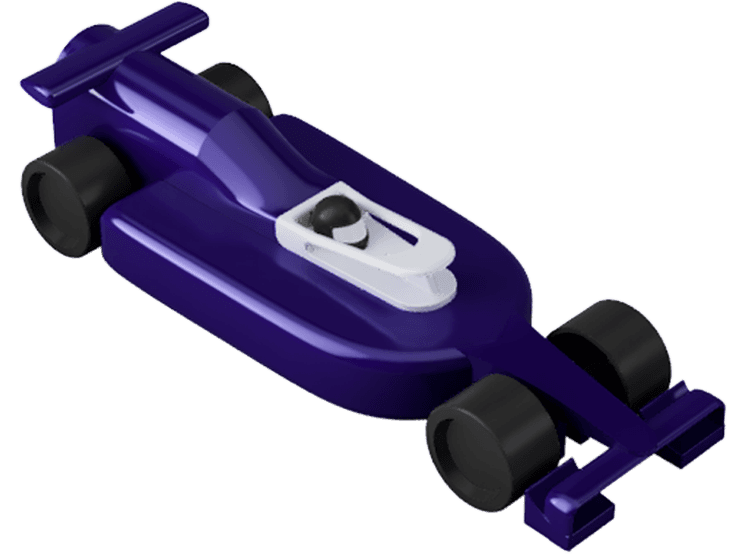

Concept Beta
Independent structural design prioritizing flow separation control and minimizing turbulent wake.
Renders

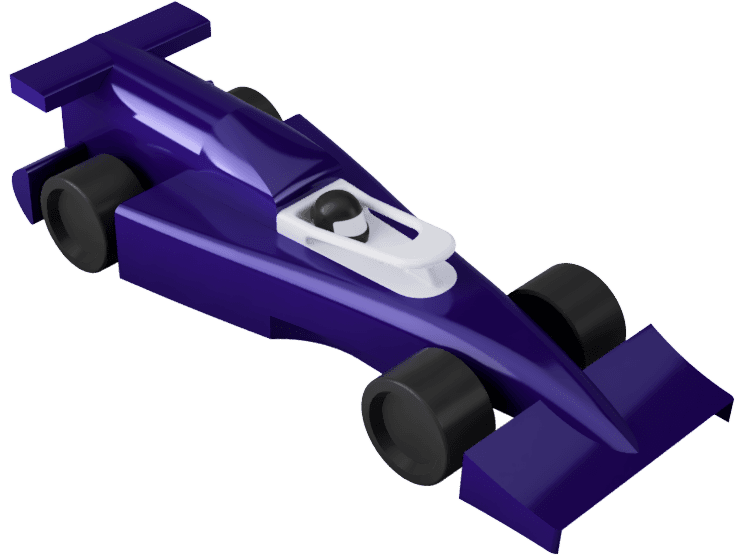

Concept Gamma
Foundational CAD model exploring weight reduction strategies within strict F1 in Schools regulations.
CFD
Beta Simulation
Ansys simulation evaluating flow separation and wake size to validate our aerodynamic efficiency.
CFD
Gamma Simulation
Testing drag coefficients and pressure distribution to optimize aerodynamic track performance.
